Products:

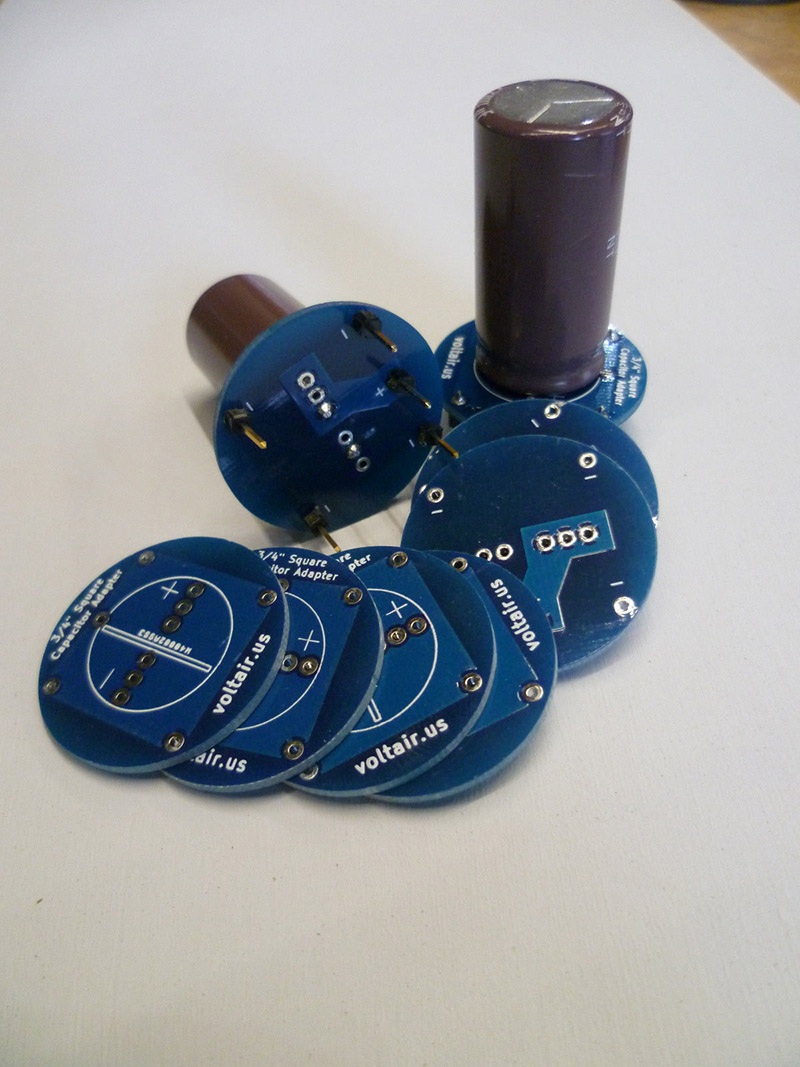

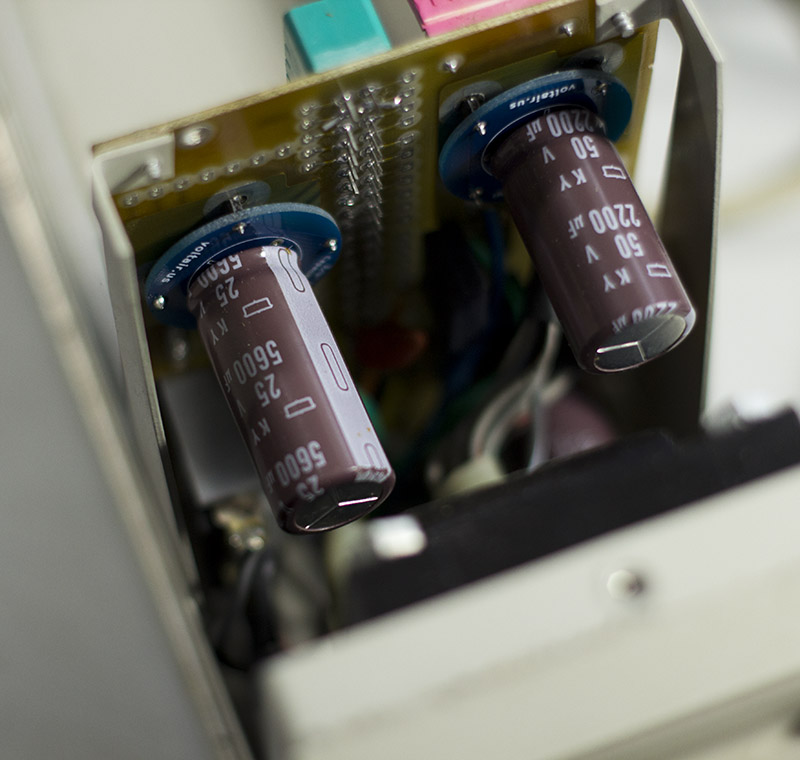

Square Capacitor Adapter

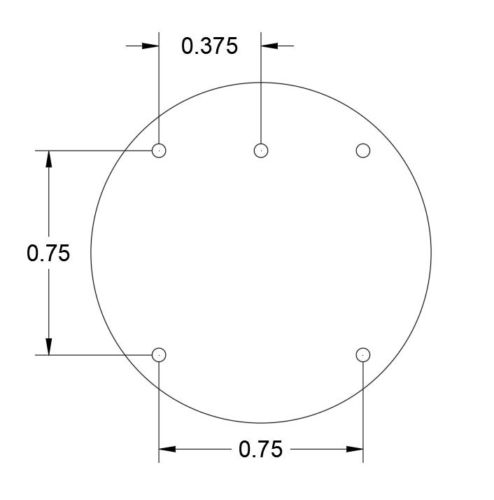

Adapt modern capacitors to replace old can capacitors. These use a square footprint commonly found in Tektronix TM500 series power supplies and Tektronix 7000 series oscilloscopes. The spacing of leads to the can capacitor are approximately 3/4" a side, and allow modern capacitors with 5mm, 7.5mm, 10mm, 12.5mm or 15mm through hole spacing.

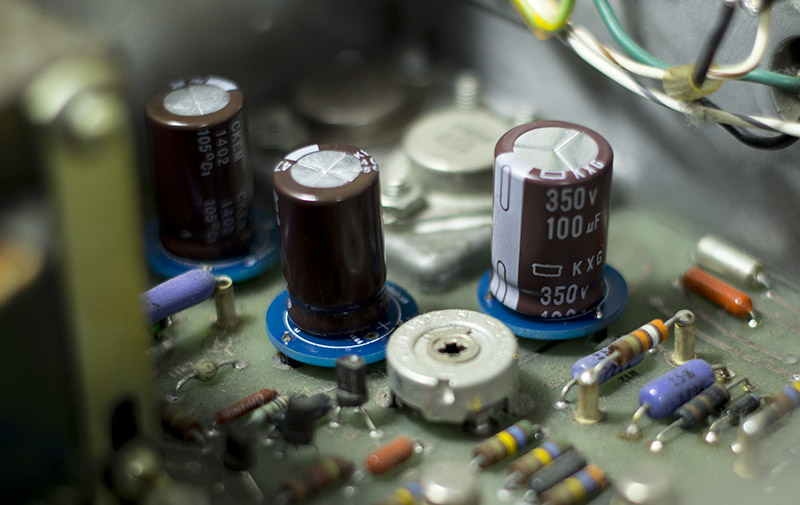

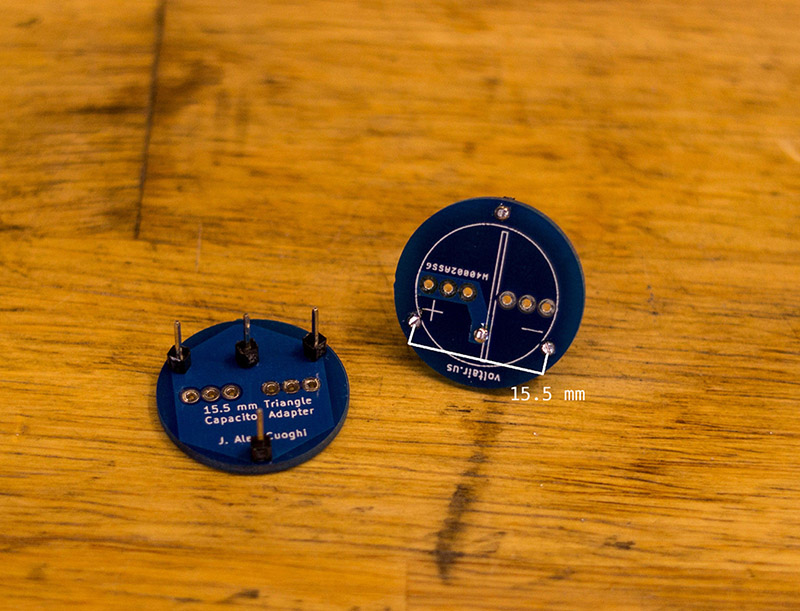

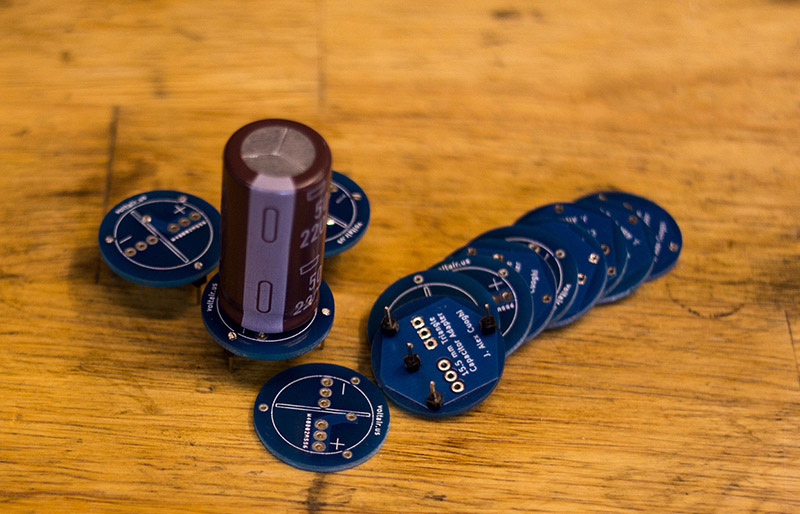

Triangle Capacitor Adapter

Adapt modern capacitors to replace old can capacitors. These use a triangular footprint commonly found in HP 6000 series power supplies and Tektronix 7000 series oscilloscopes. The spacing of leads to the can capacitor are approximately 15.5mm a side, and allow modern capacitors with 5mm, 7.5mm, 10mm, 12.5mm or 15mm through hole spacing.

Capacitor Adapter Kits

TM500 Series Power Supplies: Contains 3 square adapters enough to recap a TM501 or one section of a multi-module power supply

Tektronix 7000 Series Oscilloscope: Contains 6 square adapters and one triangle adapter for a 7000 series recap

Tektronix 465 Oscilloscope: Contains 5 triangle adapters
